Flange carbon steel
Typically made from materials that contain primarily iron and carbon, with small amounts of other elements such as manganese, silicon, and sulfur, offer excellent strength and durability, making them suitable for a wide range of applications.
| Code | Nominal Size (mm) |
Pressure Rating | Type |
| 7355059 | 80 | PN16 | slip-on |
| 7355058 | 65 | PN16 | slip-on |
| 7355057 | 50 | PN16 | slip-on |
| 7355056 | 40 | PN16 | slip-on |

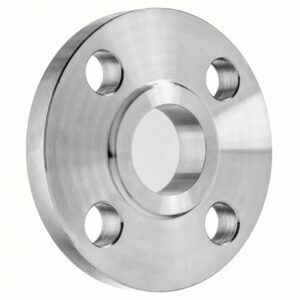

Flange Galvanized Welding
Flanges being joined together
are either made of galvanized
steel or have a galvanized
coating applied to their
surfaces, provides a robust and
corrosion-resistant connection
between flanges, making it
suitable for various applications
where durability and resistance
to rust are important.
| Code | Nominal Size (mm) |
Max. Working Pressure (kgf/cm²) |
Type |
| 7347160 | 80 | 10 | slip-on flat face |
| 7347158 | 50 | 10 | slip-on flat face |
| 7347157 | 40 | 10 | slip-on flat face |
| 7347155 | 25 | 10 | slip-on flat face |
| 7347154 | 20 | 10 | slip-on flat face |
| 7347153 | 15 | 10 | slip-on flat face |
| 7347121 | 400 | 5 | slip-on flat face |
| 7347120 | 250 | 5 | slip-on flat face |
| 7347118 | 150 | 5 | slip-on flat face |
| 7347117 | 125 | 5 | slip-on flat face |
| 7347116 | 100 | 5 | slip-on flat face |
| 7347115 | 80 | 5 | slip-on flat face |
| 7347114 | 65 | 5 | slip-on flat face |
| 7347113 | 50 | 5 | slip-on flat face |
| 7347112 | 40 | 5 | slip-on flat face |
| 7347111 | 32 | 5 | slip-on flat face |
| 7347110 | 25 | 5 | slip-on flat face |
| 7347108 | 15 | 5 | slip-on flat face |
Flange Stainless Steel Welding
Two flanges made of stainless
steel using various welding
processes, used to connect
two pipes or sections of pipe
together and is commonly used
in piping systems for different
industries, including oil and gas,
chemical, and water treatment.
| Code | Nominal Size (mm) |
Max. Working Pressure (kgf/cm²) |
Type |
| 7347006 | 40 | 5 | slip-on flat face |
| 7347005 | 32 | 5 | slip-on flat face |
| 7347004 | 25 | 5 | slip-on flat face |
| 7347002 | 15 | 5 | slip-on flat face |
Flange Steel Welding
Flanges made of steel using
welding techniques, allows for the
secure and leak-tight connection of
components, ensuring the integrity
and functionality of the system.
| Code | Nominal Size (mm) | Max. Working Pressure kgf/cm²) | Type |
| 7346035 | 300 | 10 | slip-on flat face |
| 7346034 | 250 | 10 | slip-on flat face |
| 7346033 | 200 | 10 | slip-on flat face B-2220 |
| 7346032 | 150 | 10 | slip-on flat face |
| 7346029 | 80 | 10 | slip-on flat face |
| 7346028 | 65 | 10 | slip-on flat face |
| 7346027 | 50 | 10 | slip-on flat face |
| 7346026 | 40 | 10 | slip-on flat face |
| 7346025 | 32 | 10 | slip-on flat face |
| 7346015 | 300 | 5 | slip-on flat face |
| 7346014 | 250 | 5 | slip-on flat face |
| 7346013 | 200 | 5 | slip-on flat face |
| Code | Nominal Size (mm) |
Max. Working Pressure (kgf/cm²) |
Type |
| 7346012 | 150 | 5 | slip-on flat face |
| 7346011 | 125 | 5 | slip-on flat face |
| 7346010 | 100 | 5 | slip-on flat face |
| 7346009 | 80 | 5 | slip-on flat face |
| 7346008 | 65 | 5 | slip-on flat face |
| 7346007 | 50 | 5 | slip-on flat face |
| 7346006 | 40 | 5 | slip-on flat face |
| 7346005 | 32 | 5 | slip-on flat face |
| 7346004 | 25 | 5 | slip-on flat face |
| 7346003 | 20 | 5 | slip-on flat face |
| 7346002 | 15 | 5 | slip-on flat face |
Square Flange Hydraulic
Type of hydraulic fitting used to
connect hydraulic components,
such as pumps, valves, or
cylinders, in a hydraulic system,
characterized by a square-shaped
flange that provides a secure and
reliable connection between two
mating components
| Code | Nominal Size(mm) |
Pressure (Psi) | Type |
| 7348216 | 20 | 3000 | mild steel |
| Code | Nominal Size (in) |
Pressure (Psi) | Type |
| 7348221 | 3/4 | 6000 | |
| 7348220 | 1-1/4 | 6000 | Italy |
| 7348218 | 1-1/2 | 6000 | - |
| 7316361 | 20 x 50 | 80 | concentric steel butt welding high pressure |
Stud Flange
Flange with a threaded rod
(stud) and a zinc coating to
prevent corrosion, offers a
secure connection and long-term
durability, making it suitable for
various industrial applications,
especially where moisture or
corrosive substances are present.
| Code | Unit | Type |
| 7348343 | 6" x 5kg c/w bolt nut | galvanized |
| 7348341 | 4" x 5kg c/w bolt nut | galvanized |
| 7348338 | 2-1/2" x 5kg c/w bolt nut | galvanized |
| 7348335 | 1-1/4" x 5kg c/w bolt nut | galvanized |
| 7348311 | 8" - 10k c/w bolt and nut
M20 stainless steel |
galvanized |
| 7348306 | 2"
- 5k c/w bolt and nut M12 stainless steel |
galvanized |
| 7348305 | 1-1/2" - 5k c/w bolt and
nut M12 stainless steel |
galvanized |
